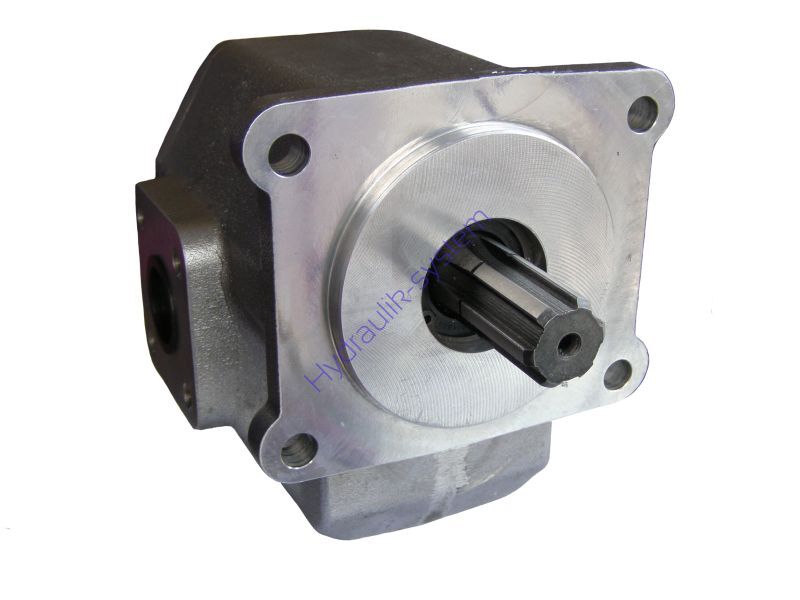

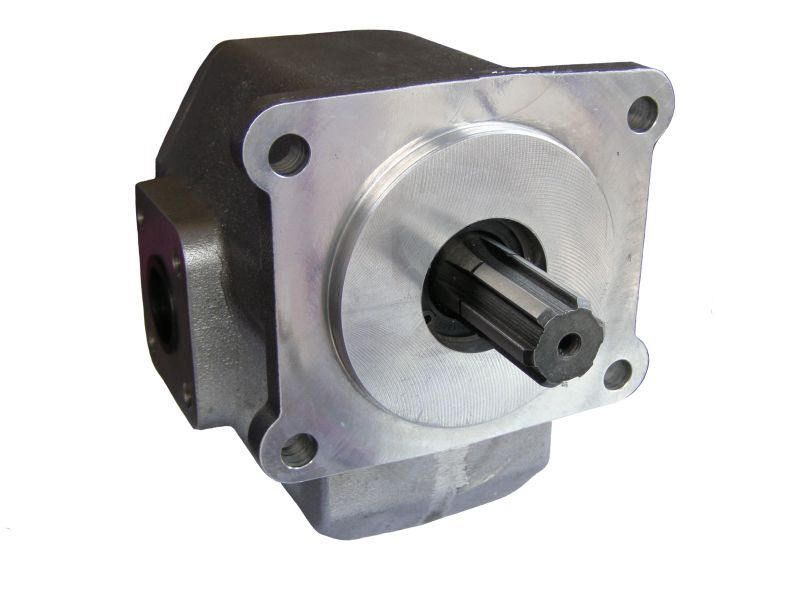

Pompa zębata NSZ-32A-3P

Add feedback:

Code: NSZ-32A-3P
Availability: (0 pcs.)

Gross price: 1,168.50 zł 950.00 zł
pcs.

Dane techniczne:
kierunek obrotów w prawo
wyjście wałka przez płytę przednią
kołnierz mocujący 12x110x134
z 4 otw. Ø11 i zamkiem Ø90x6
geometryczna objętość robocza 31,5 [cm3]
ciśnienie max.: (ciągłe) 16 [MPa]
               (przerywane) 20 [MPa]
prędkość obrotowa: 960 do2400 [obr./min.]
                       nominalna 1920 [obr./min.]
przepływ nominalny 56,8 [l/min] przy 1920 [obr./min.]
maksymalna moc napędowa 18,5 [kW]
przyłącza: wlot i wylot Ø28
z 4 otw. mocującymi 4M8x14
wałek napędowy Ø25 wielowypustowy 6x20,1x25x5
wymiary 146x155x195(z wałkiem napędowym)
